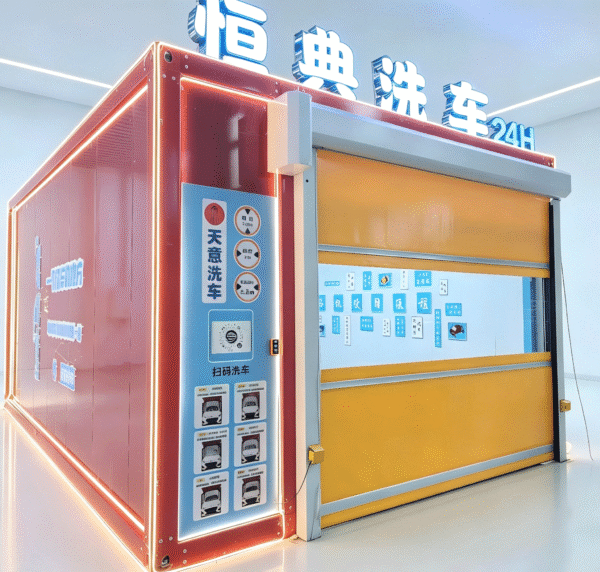

Product Overview: The prefabricated car wash bay is a high-quality, fully integrated wash bay built by our company. The entire line is laser-cut for precise blanking, giving clean edges without burrs and high dimensional accuracy while balancing structural strength and installation efficiency. The main frame receives dual treatment — hot-dip galvanizing plus electrostatic powder coating — so the zinc layer bonds tightly for corrosion resistance and the coating is even and wear-resistant, resisting rust and fading in damp, water-heavy environments for a longer service life. The structure is solid and the look is clean and modern; dimensions and layout can be customized to suit logistics parks, gas stations, auto repair shops and many other sites. It installs quickly and is easy to maintain, giving you a durable, reliable professional wash space that combines good looks with practicality.
Product Advantages: Lightweight panels with excellent fire-retardant performance for high safety. The panels also provide good thermal insulation and soundproofing, helping stabilize indoor temperature and reduce energy consumption. They are waterproof and moisture-proof, and resist mould and deformation, making them ideal for the damp, water-heavy environment of a car wash. Easy to install with a flat, even structure, they combine safety, durability and appearance to improve the overall experience.
Technical Specifications:
| Bay Dimensions | 6.5m/7.5m/8.5m*4.5m/5m*3.2m |
| Honeycomb Light | 147 holes / 700W |
| Rolling Shutter Door | 3.3m*3.2m |
| Floor Grating Size | 6.3m*4.3m |
| Unattended QR Payment | Standard |
| Interior & Exterior Finish | Basic Package |
| Wall Panel | Powder-Coated Galvanized Steel |
| Core Material | Powder-Coated Corrugated Steel |
| Main Beams (H & V) | 60mm*60mm |
| Secondary Beams (H & V) | 40mm*80mm |
| Car Wash Bay Material Details |
| 1. Left/right outer walls and rear wall: flat powder-coated galvanized steel; inner walls: flat powder-coated galvanized steel; thickness 0.4 mm, with a 50 mm silica rock wool insulation layer between them 2. Roof: outer layer flat powder-coated galvanized steel, inner layer flat powder-coated galvanized steel, thickness 0.4 mm, with 50 mm silica rock wool insulation between them 3. Two middle partition walls: single-layer powder-coated corrugated steel, thickness 0.4 mm 4. Main horizontal beam: 160 mm × 60 mm, wall thickness 2.0 mm 5. Main vertical beam: 160 mm × 160 mm, wall thickness 2.0 mm 6. Corner hanging brackets: thickness 3.0 mm 7. Top reinforcing secondary horizontal and vertical beams: 40 mm × 80 mm, wall thickness 2.0 mm 8. Reinforcing secondary vertical beams for the middle partition: 40 mm × 80 mm, wall thickness 2.0 mm 9. Fixing plates: right-angle folded galvanized steel, thickness 1.0 mm 10. Hat-shaped galvanized steel channel, thickness 1.2 mm |
