Product Overview

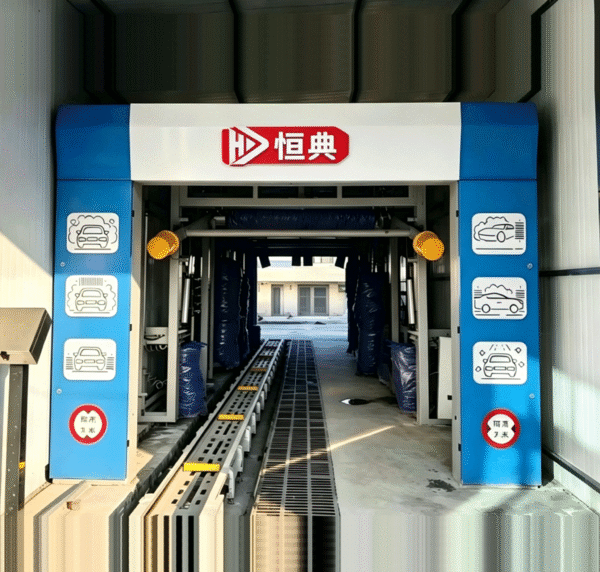

Tunnel car wash machine is a large automatic car wash machine that can both wash quickly and run continuously, handling 50–60 vehicles per hour — currently the most efficient car wash machine in the world. It suits wide sites with heavy traffic flow, and can be configured with 7, 9 or 11 brushes depending on the actual site size and the operator’s needs, or built as a customized production-line car wash. With a sturdy main body and excellent performance, it is well liked by customers at home and abroad.
Main Functions: Automatic sensing and spraying, automatic detergent application, automatic wheel hub cleaning (optional), automatic profile-following body washing, automatic chassis rinsing, automatic water-wax polishing, automatic blow-drying system, automatic towel drying (optional), automatic detection, optional water treatment system, eco-friendly water saving.
Technical Specifications:
| Machine Dimensions | L 13 m × W 3.8 m × H 3 m |
| Installation Dimensions | L 15 m × W 4 m × H 3 m |
| Max Vehicle Size | L 5.2 m × W 2 m × H 2 m |
| Voltage / Power | 380V, 50Hz / 35kW |
| Control | Touch screen
|
| Power Consumption | 0.5–0.8 kWh |
| Water Consumption | 80L-120L |
| Wash Time | 40–50 vehicles / hour |
