Product Overview

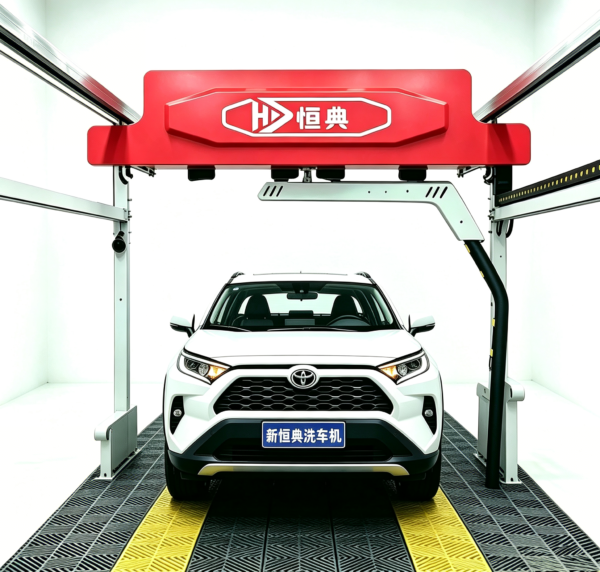

The single-swing-arm touchless car wash machine uses an ultrasonic intelligent detection system for 360° cleaning with no blind spots, offering chassis cleaning, body pre-wash, no-wipe detergent washing, high-pressure rinsing, bright coating and powerful blow-drying — a fully automatic, intelligent touchless car wash machine that washes and protects in one. The machine is sturdy and durable, with an appearance that appeals to customers at home and abroad. It has a relatively small footprint and strong adaptability to different sites, with excellent performance that customers appreciate.
Main Functions: 360° wrap-around rinsing, safety alarm, self-diagnosis, touch-screen control, automatic standby, body recognition, parking detection, leakage protection, no-wipe detergent, foam, water wax, blow-drying.
Technical Specifications:
| Model | Single arm, 4 blowers | Single arm, 6 blowers |
| Installation Dimensions | L 7.5 m × W 3.3 m × H 3 m | L 7.5 m × W 3.8 m × H 3 m |
| Max Vehicle Size | L 5.2 m × W 2 m × H 2.1 m | L 5.2 m × W 2 m × H 2.1 m |
| Voltage / Power | 380V,50Hz/17kW | 380V,50Hz/35kW |
| Blower Quantity | 2.2kW*4 | 2.2kW × 4 + 3kW × 2
(4 top blowers, 2 side blowers) |
| Control | 1. 7-inch smart touch screen with OTA updates
2. Dedicated multi-function button box 3. Built-in QR code payment system |
1. 7-inch smart touch screen with OTA updates
2. Dedicated multi-function button box 3. Built-in QR code payment system |
| Main Pump Power | 7.5kW | 11kW |
| Rinse Pressure | 50-80KGr | 80-100KG |
| Power Consumption | 0.45–1 kWh / vehicle | 0.6–1 kWh / vehicle |
| Water Consumption | 150–200 L / vehicle | 150–200 L / vehicle |
| Wash Time | 3–8 min / vehicle | 3–8 min / vehicle |
