Product Overview

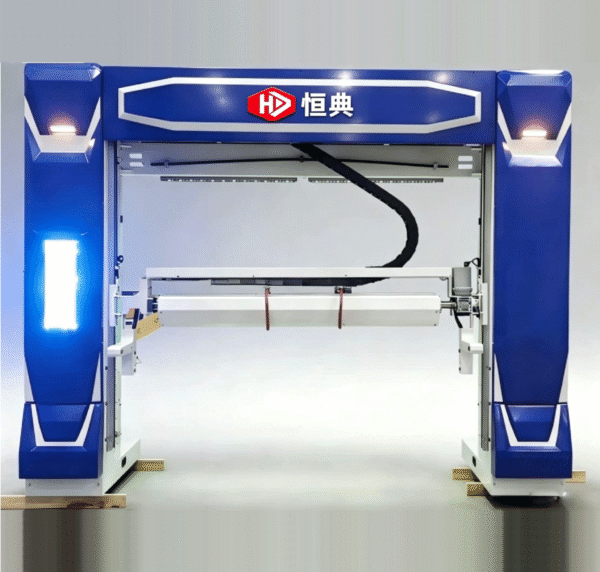

The reciprocating touchless car wash machine applies an advanced design concept, a simple and practical structure and an intelligent high-pressure washing system that mimics manual washing motions, cleaning up, down, front and back with no blind spots. It intelligently controls water pressure and washing distance, always hugging the body surface to achieve faster and better cleaning results.
Main Functions: Automatic sensing spraying, automatic detergent application, automatic profile-following body brushing, automatic chassis rinsing, automatic water-wax polishing, automatic blow-drying system, automatic detection, optional water treatment system, eco-friendly water saving.
Technical Specifications:
| Machine Dimensions | L 1.2 m × W 3.6 m × H 3 m |
| Installation Dimensions | L 10 m × W 4 m × H 3 m |
| Max Vehicle Size | L 5.5 m × W 2 m × H 2 m |
| Voltage / Power | 380V, 50Hz / 40kW |
| Control | 1. 7-inch smart touch screen with OTA updates
2. Dedicated multi-function button box 3. Built-in QR code payment system |
| Pump Power | 11kW |
| Outlet Pressure | 100kg |
| Power Consumption | 0.5–1 kWh / vehicle |
| Water Consumption | 120-150L |
| Wash Time | Quick wash 3 min / deep wash 10 min |
